Description
DN40 FlexEJ Flanged Rubber Bellows – EPDM for HVAC applications – pipe expansion, misalignment and vibration. PN16 flanges with threaded bolt holes. For Nitrile and other rubber types see the Elaflex range.
Loading...

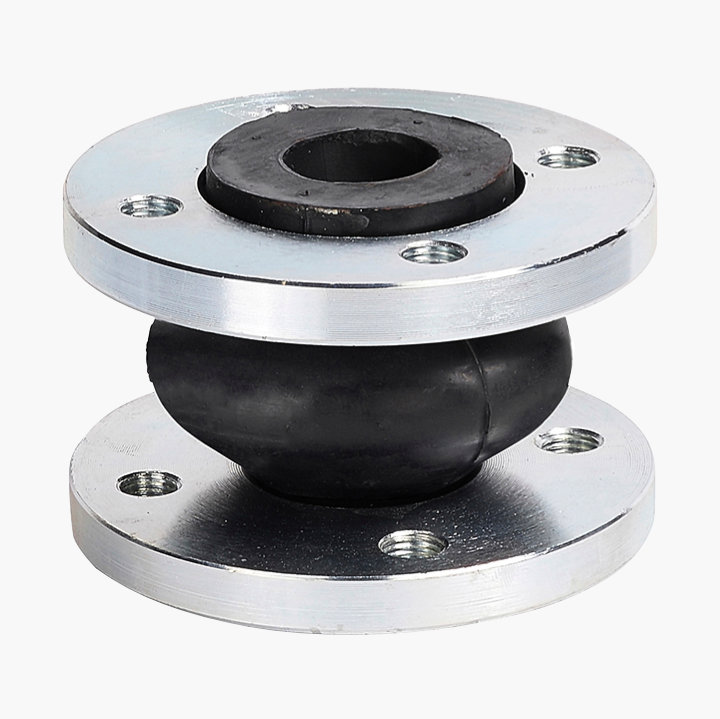

DN40 (1½″) FlexEJ EPDM Rubber Bellows – Length 106 mm
£45.19 inc. VAT (£37.66 exc. VAT)
DN40 FlexEJ Flanged Rubber Bellows - EPDM for HVAC applications - pipe expansion, misalignment and vibration.
Factory Direct Pricing
On all products. Highly competitive. Great value and ship same day from our UK manufacturing plants in Birmingham.
Same Day Shipping
Orders received Monday to Thursday by 12:30pm for stock items will be despatched that day on a 24hr service on all standard items. Orders placed by 9:30am on Fridays will ship the same day for next working day delivery. Some oversize items need pallets and may take an extra 2-3 days for delivery. Delivery date for items shown with a manufacturing lead time will be confirmed after order.
PE(S)R (PED) Assessed
The range of suitable applications and corresponding PE(S)R assessment is stated for this product in the product’s Technical Information tab. If you have any doubt or question that your intended application falls outside the SEP application range please contact us and we will be pleased to advise. For a full explanation of PE(S)R see here
3 in stock
SKU: R0040SF5AA16U
Loading...
Additional information
| Weight | 4 kg |
|---|---|
| Dimensions | 10.6 × 15 × 15 cm |
| Pipe Size | DN40 (1½″) |
| Application | For pipe expansion, misalignment and vibration. HVAC water applications – LT heating, waste, sanitary, chilled |
| Bellows Material | EPDM |
| Bellows Description | EPDM liner with nylon reinforcing |
| Not Suitable For | Potable / drinking water, mineral oils or oil contaminated water, gases |
| PE(S)R (PED) | SEP, not marked, use with Group 2 liquid media only |
| Pressure Rating | 16 barg @ 20 °C to 6 barg @ 95 °C |
| Vacuum Rating | -400 mbar with no additional support ring |
| PN Rating | PN16 |
| Installation Length | 106 mm |
| Axial Movement | ± 20 mm |
| Lateral Movement | ± 30 mm |
| Angular Movement | ± 7.5 ° |
| Tie Rods | No |
| Connection Type | Flange |
| Connection | PN16 – threaded bolt holes – swivel Carbon steel flanges – Galvanised |
| Shipping | Standard (24hrs) |
| Media | Water (HVAC Chilled), Water (HVAC LT Heating) |
