£225.05 inc. VAT (£187.54 exc. VAT)
FlexEJ designs and manufactures in the UK.
If you need different sizes, materials or something designed to your exact requirements then please get in contact and we will be happy to help.
4 in stock

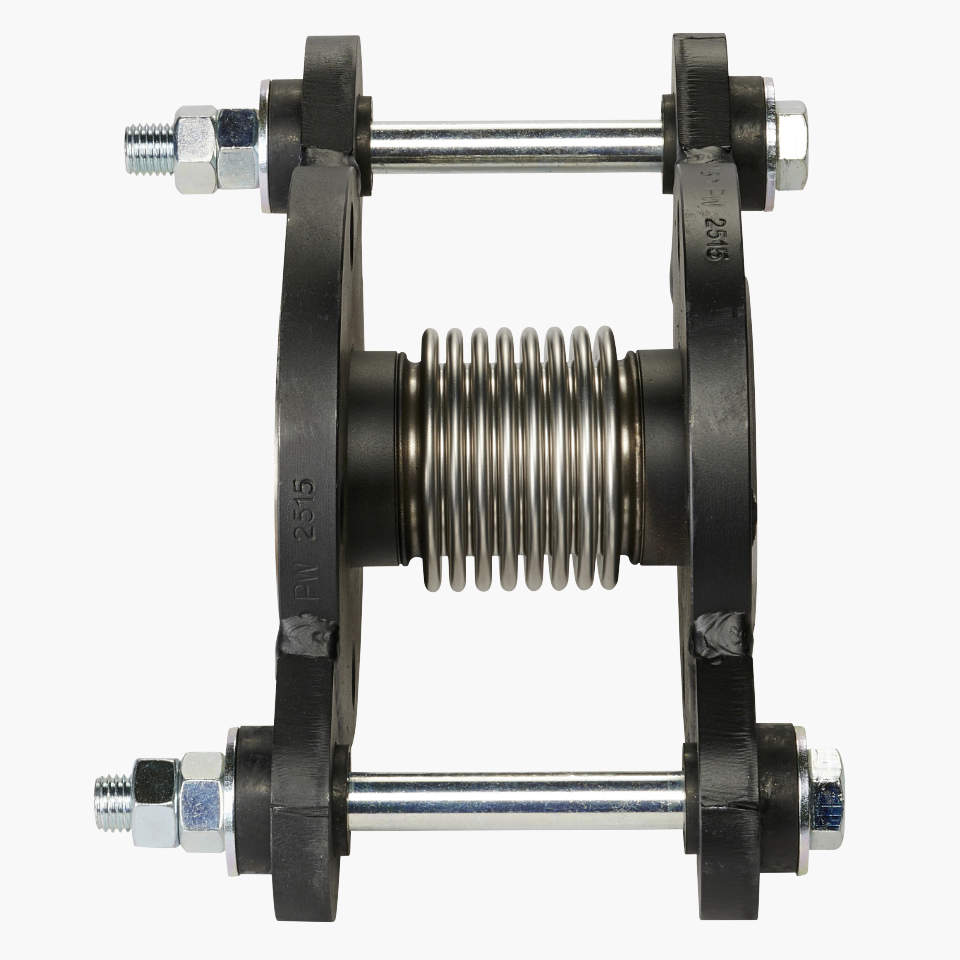

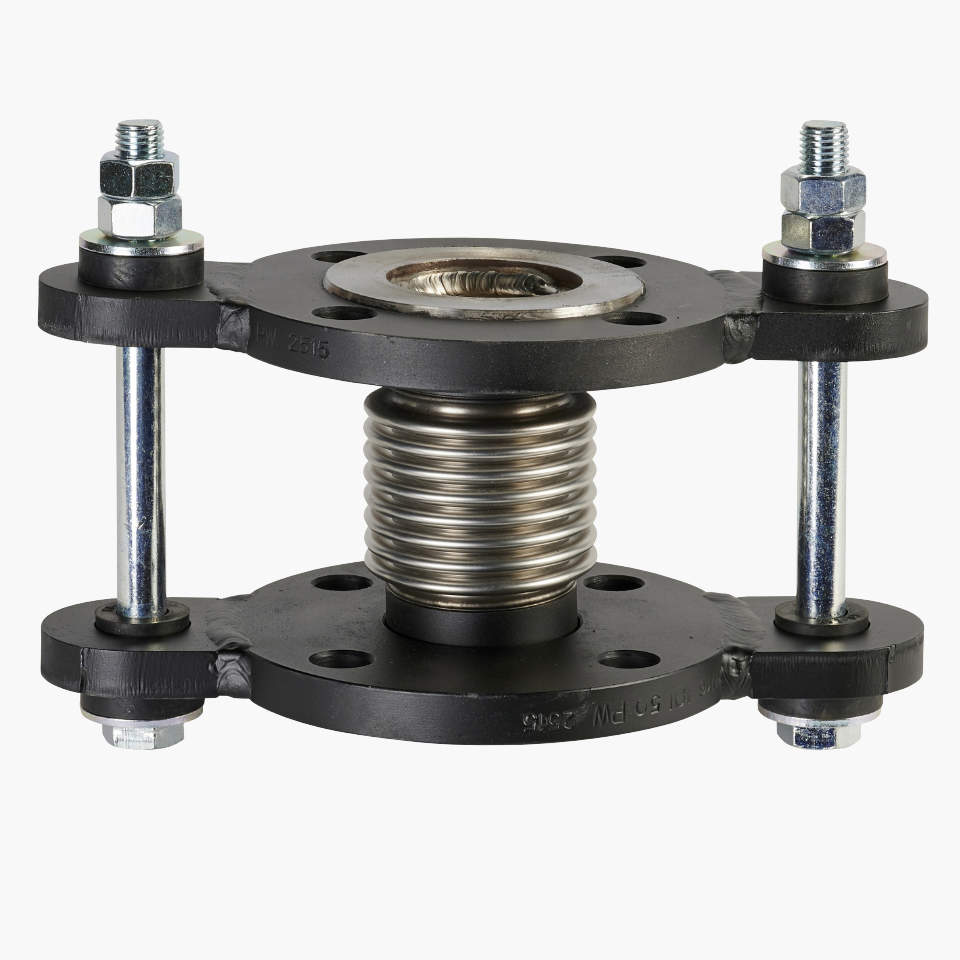

DN50 FlexEJ flanged tied pump expansion joint with 321 stainless steel bellows for lateral movements. High quality bellows calculated to EJMA. Contact sales for our full range of standard and manufactured to order industrial expansion joints.
| Weight | 7.1 kg |
|---|---|
| Dimensions | 18 × 28.5 × 16.5 cm |
| Pipe Size | DN50 (2″) |
| Application | Lateral pipe movement and pumps in HVAC water applications – HTHW, LTHW, heating water |
| Bellows Material | 321 Stainless |
| Bellows Description | 321 stainless steel multiply bellows designed for 1000 EJMA cycles |
| Not Suitable For | Potable / drinking water, steam |
| PE(S)R (PED) | SEP, not marked, use with Group 2 liquid media only. For other applications and higher design temperatures please contact FlexEJ Sales |
| Pressure Rating | 10 barg @ 110 °C |
| Vacuum Rating | FV |
| PN Rating | PN16 |
| Installation Length | 130 mm |
| Lateral Movement | ± 3 mm |
| Tie Rods | Yes |
| Restraint Type | Two tie rods and rubber top hat washers |
| Connection Type | Flange |
| Connection | PN16 Carbon steel flanges – Painted matt black |
| Conformance | EJMA |
| Recommended Bolting | M16x60 FlexEJ Bolt Set |
| Recommended Gaskets | DN50 (2″) FlexEJ PN16 Gasket Set – 2 Pack |
| Shipping | Standard (24hrs) |
| Media | Water (HVAC Chilled), Water (HVAC HT Heating), Water (HVAC LT Heating) |
SHIPPING
Orders received Monday to Thursday by 2pm will be despatched that day on a 24hr service on all standard items. Orders placed by 10am on Fridays will ship the same day for next working day delivery. Some oversize items need pallets and may take an extra 2-3 days for delivery. For any enquiries or technical support or help with overseas orders please contact us direct on +44 (0) 1384 881188 or by LIVE CHAT
