HVAC Metal Bellows

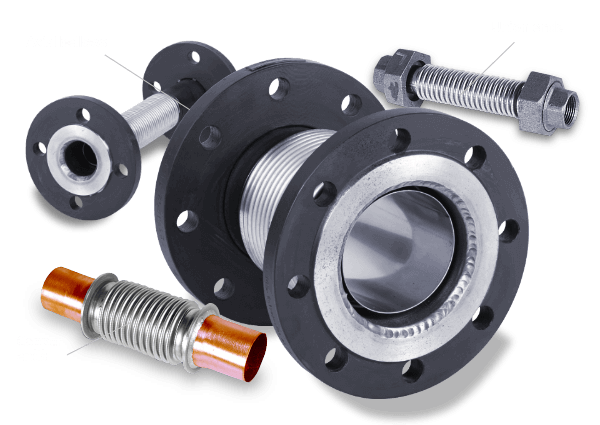

Metal bellows specifically designed for HVAC applications in a range of styles to suit your piping:
HVAC Copper End Bellows
HVAC Union End Bellows
HVAC Axial Metal Bellows
HVAC Metal Pump Bellows
PRODUCT GUIDES
HVAC METAL BELLOWS
WHAT IS AN HVAC METAL BELLOW?
HIGH-TEMPERATURE DESIGN WITH FLANGED, COPPER OR UNION ENDS…
Design
Extensive range of metal bellows suitable for a wide range of HVAC services.
Performance
High quality bellows manufactured in 316 stainless steel.
Application
Potable water, heating water, steam.
WEB SHOP
Available online with next day delivery from our web shop.
COPPER END HVAC METAL BELLOWS
| SIZE | LENGTH | COPPER PIPE SIZE | PRESSURE RATING | MOVEMENT | IN SHOP |
|---|---|---|---|---|---|
| DN12-½″ | 220 | 15 | 6 Barg @ 90 ºC | Axial +0/-25 mm | Yes |
| DN20-¾″ | 230 | 22 | 6 Barg @ 90 ºC | Axial +0/-25 mm | Yes |
| DN25-1″ | 235 | 28 | 6 Barg @ 90 ºC | Axial +0/-25 mm | Yes |
| DN32-1¼″ | 245 | 35 | 6 Barg @ 90 ºC | Axial +0/-25 mm | Yes |
| DN40-1½″ | 250 | 42 | 6 Barg @ 90 ºC | Axial +0/-25 mm | Yes |
| DN50-2″ | 250 | 54 | 6 Barg @ 90 ºC | Axial +0/-25 mm | Yes |
UNION END HVAC METAL BELLOWS
| SIZE | LENGTH | PRESSURE RATING | MOVEMENT | IN SHOP |
|---|---|---|---|---|
| DN12-½″ | 181 | 6 Barg @ 150 ºC | Axial +0/-25 mm | Yes |
| DN20-¾″ | 187 | 6 Barg @ 150 ºC | Axial +0/-25 mm | Yes |
| DN25-1″ | 191 | 6 Barg @ 150 ºC | Axial +0/-25 mm | Yes |
| DN32-1¼″ | 207 | 6 Barg @ 150 ºC | Axial +0/-25 mm | Yes |
| DN40-1½″ | 215 | 6 Barg @ 150 ºC | Axial +0/-25 mm | Yes |
| DN50-2″ | 229 | 6 Barg @ 150 ºC | Axial +0/-25 mm | Yes |
HVAC AXIAL METAL BELLOWS
How to specify a metal expansion joint
We design and manufacture metal expansion joints so you are not restricted to our range of standard products, some of which are available in our web shop. For simpler applications a standard product may be entirely suitable but if not we will design to meet your exact requirements.
FlexEJ’s HVAC Metal Bellows
FlexEJ’s has the following ranges of HVAC Metal Bellows available:
HVAC Copper End metal bellows
DN12 to DN150

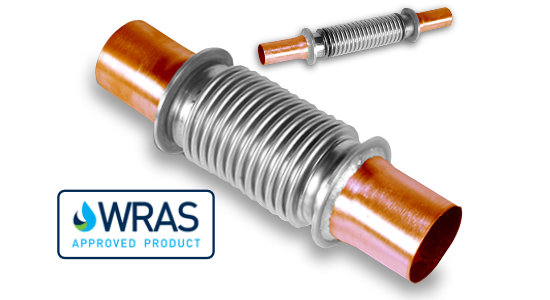

HVAC COPPER END METAL BELLOWS
EN1057 Table X copper ends
FlexEJ’s copper ended bellows are WRAS approved for drinking water. Minimum length designs for axial compression with 316 stainless steel bellows rated at 6 Barg @ 90°C
HVAC Union End metal bellows
DN12 to DN50

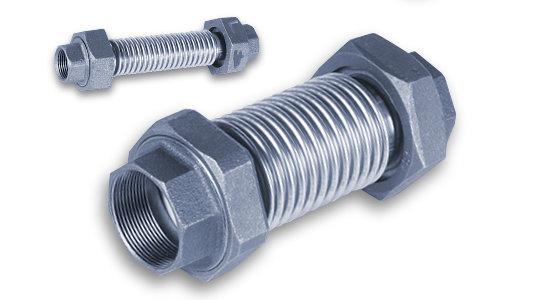

HVAC UNION END METAL BELLOWS
EN10242 Female union ends
Union ended bellows. Minimum length designs for axial compression with 316 stainless steel bellows rated at 6 Barg @ 150°C
Axial metal bellows
DN50 to DN150

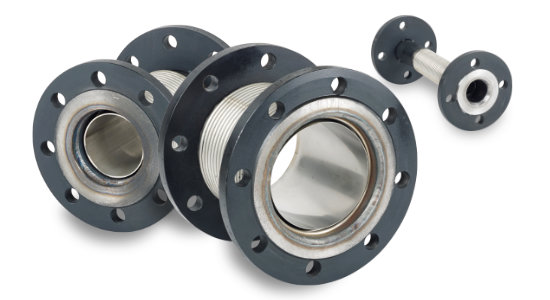

AXIAL METAL BELLOWS
EJMA calculated punch formed bellows
FlexEJ’s Short Axial range offer moderate axial movements and are consequently shorter overall. Stainless Steel 321 bellows, designed to EJMA, manufactured by punch forming. Minimum overall length design with PN16 carbon steel flanges. These expansion joints are rated for applications up to 10 Barg @ 110°C.
HVAC Pump bellows
DN50 to DN150

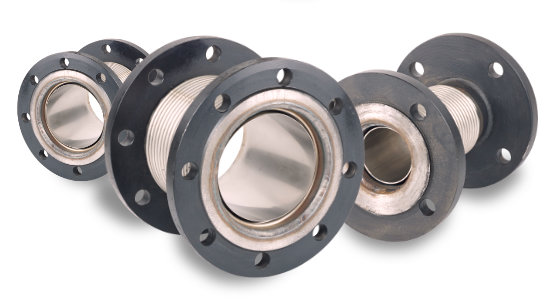

HVAC PUMP BELLOWS
EJMA calculated punch formed bellows
FlexEJ’s Pump range offer small lateral movements suited to pump alignment and vibration applications. Available as tied and untied. Stainless Steel 321 bellows, designed to EJMA, manufactured by punch forming. Minimum overall length design with PN16 carbon steel flanges. These expansion joints are rated for applications up to 10 Barg @ 110°C.
HVAC Metal Bellows Finders and Calculators
We have a couple of easy to use tools and calculators to help you resource the best HVAC metal bellows from our next-day delivery stock items. Our Thermal Expansion Calculator for Piping helps you estimate the increase in length of a pipe run with temperature.
Our Advanced Bellows Finder is a quick way to navigate our the full range of on-line metal and rubber expansion bellows and joints – with 24hr delivery across the UK. With just a few choices you can arrive at the appropriate selection – criteria include pipe size, type, media compatibility, installation length, pressure rating, pipe connection type, conformance and movement axial, lateral and angular. All the products are in the online store with 24hr shipping as standard. If you’re not sure what flange you need, our handy Flange Finder should also be useful.Stock HVAC Metal Bellows Finder
Do search for HVAC Metal expansion joints by pipe size, intended media and/or connection hardware to see FlexEJ’s stock of next-day deliverable metal bellows options but don’t hesitate to call us on 01384 881188 or email us for more bespoke options, sizes and restraint configurations or technical advice.
